Category：Airflow dryer series
& nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp;& nbsp;
Scope of application
Airflow drying is mainly used to dry powdered or granular materials, with a particle size of no more than 1mm. Due to its high operating gas speed and short drying time, it is generally suitable for constant speed drying processes where water evaporates from the surface of the material.

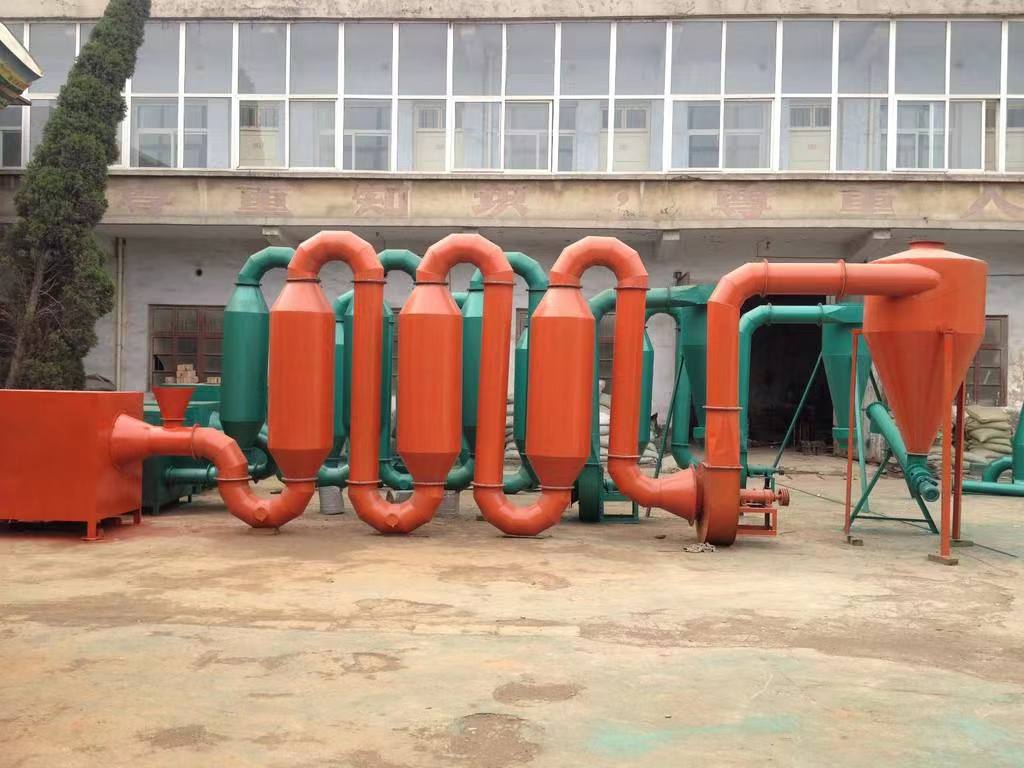

Air flow drying can be divided into straight tube air flow dryer, pulse air flow dryer, cyclone air flow dryer, dispersion air flow dryer, pulverization air flow dryer, exhaust gas circulation air flow dryer, and two-stage air flow dryer according to the material form and characteristics.
technical parameter
| model | Evaporated moisture (kg/h) | Installed capacity (kW) | Floor Area (m2) | Height (m) |
| QG50 | fifty | 6(8) | twenty | twelve |
| QG100 | one hundred | 8(11) | thirty-two | twelve |
| QG200* | two hundred | 16(19) | forty | twelve |
| QG250 | two hundred and fifty | 20(27) | sixty-four | sixteen |
| QG500 | five hundred | 33(48) | ninety-six | sixteen |
| QG1000* | one thousand | 63(78) | one hundred and twenty | sixteen |
| QG1500* | one thousand and five hundred | 93(108) | two hundred | eighteen |
| Those marked with an asterisk (*) are secondary dryers, and the installed power and floor area are calculated using steam heating method. | ||||
